Audio & Video Selector

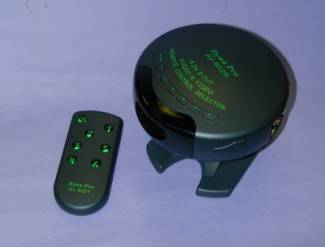

[Connection Example]

Remote Control AV Selector

Model	*AV-602R*
Input	6 RCA
Output	2 RCA
Power Source	AC adapter 7.5VDC – 300mA Remote battery AAA size x 2
Dimensions	150(W) x 150 (D) x 110(H) mm
Weight	495 g

AV-48R

[Connection Example]

4-IN 2-OUT
Remote Control AV Selector

Model	*AV-48R*
Input	4 (RCA Socket)
Output	2 (RCA Socket)
Power Source	DC 9V (with adapter) AAA x 3 (Remote Control)
Dimensions	34(H)x162(W)x120(D)mm
Weight	274g

AV-42N

[Connection Example]

4-IN 2-OUT AV Selector

Model	*AV-42N*
Input	4 (RCA Socket)
Output	2 (RCA Socket)
Dimensions	34(H)x162(W)x120(D)mm
Weight	265g

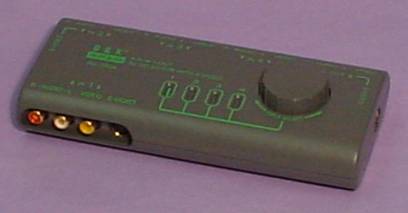

[Connection Example]

AV Selector

Model	AV-368S
Input	2 (RCA) + 2 (RCA & S-VIDEO)
Output	1 (RCA & S-VIDEO)
Dimensions	175(W) x 80 (D) x 30 (H) mm
Weight	175g

VSW-42S

[Connection Example]

4-IN 2-OUT AV Selector

Model	*VSW-42S*
Input	4 (RCA Socket)
Output	2 (RCA Socket)
Power Source	AC 220-240V, 50/60Hz
Dimensions	47(H)x170(W)x190(D)mm
Weight	995g

VSW-388S

[Connection Example]

4-IN 2-OUT AV Selector(S-Video)

Model	*VSW-388S*
Input	4 (RCA Socket + S-Video)
Output	2 (RCA Socket + S-Video)
Dimensions	47(H)x170(W)x190(D)mm
Weight	600g

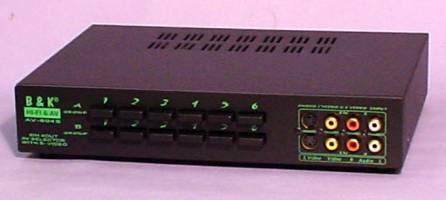

[Connection Example]

AV Selector

Model	AV-604S
Input	6 (RCA + S-VIDEO)
Output	4 (RCA + S-VIDEO)
Dimensions	260(W) x 185(D) x 48(H) mm
Weight	965 g

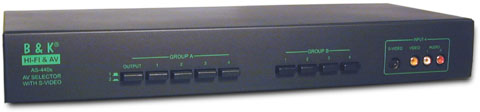

AS-440s

[Connection Example]

4-IN 2-OUT S-Video AV Selector

Model	AS-440s
Input	2 (RCA + S-Video)
Output	Group A : 2 (RCA + S-Video) Group B : 1 (RCA + S-Video) & 1 RCA (Audio)
Dimensions	55(H)x420(W)x165(D)mm
Weight	1.2kg

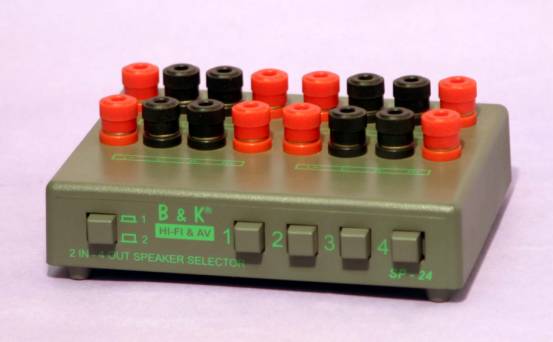

SP-24

[Connection Example]

2-IN 4-OUT Speaker Selector

Model	*SP-24*
Input	2 (Speaker Terminal)
Output	4 (Speaker Terminal)
Dimensions	40(H)x162(W)x130(D)mm
Weight	290g

[Connection Example]

Speaker Selector

Model	SP-24A
Input	2 (Banana Terminal)
Output	4 ( Banana Terminal)
Dimensions	40(H)x162(W)x130(D)mm
Weight	290g
