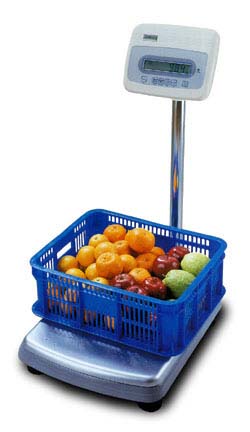

Platform Scale
Platform ScaleCE
  • Stainless steel weighing pan for easy wash-down and moisture protected loadcell.
  • Rugged aluminum alloy construction for heavy load use.
  • Tiltable display panel design.
  • Choice of operating power : dry battery, rechargeable battery or AC power.
  • Large easy-to-read LCD with backlight.
  • Simple piece counting & percentage weighing functions
  • Weight checking function.
  • Optional RS-232 interface (bi-directional port) allows connect to a computer or printer or large external display.
  • Instant Max. impact lockup.
  • Dynamic weight lockup.
  • G.W. / N.W. switchable.
  • Auto / manual print modes
  • Low battery voltage indication.
  • Selectable capacity-min. division configuration.
  • Pre-set Tare through either keyboard or computer.

    Capacity / Resolution
    100kg x 0.01kg
    150kg x 0.02kg
    Display LCD, 25mm / 1.0 inch high, 6 digits
    Pan Size
    430 x 530 mm / 17 x 21 inches
    4 x UM-2 or 6V / 4Ah rechargeable battery
    or AC110V / 220V, 50/60Hz
    Battery Life
    approx. 90 hrs for alkaline batteries
    100hrs for rechargeable batteries
    Net Weight approx. 17kg / 37.5 lb
    -5°C to 35°C (23°F to 95°F)
    Maximum Humidity 85% Relative Humidity
