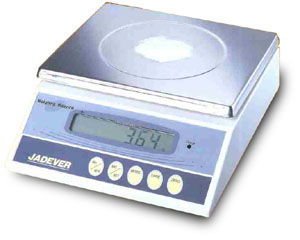

Weighing Scale

Weighing ScaleCE
Features:
Four Selectable Capacity-Resolutions For Each Model -
Each model can be configured as one of the FOUR software-selectable capacity-resolutions just by operation of keyboard. Display reslution can be as high as 1/15,000 (internal counting resolution 1/75,000).

Ratio Counting -
Piece counting function by weight comparison. 25, 50 or 100 pcs can be chosen as reference weight for calculation.

Percentage -
Can be used for user-defined weighing unit or for material mixing. 25%, 50% and 100% are available for choice.

Weighing Check -
Internal alarm will sound repeated beeps when user-preset weight is reached.

Accumulation -
Total weight and accumulated times can be summed and recalled later. Up to 99 items can be added in one accumulation.

Digital Filtering -
Four-level software-selectable digital filter for avoiding unstable results when weighing vibrating objects or in environments with wind or vibration.

Software Calibration -
Software calibration is provided to eliminate the need of repeated load and unload of calibration weight.

Auto Power-Off -
Scale can be automatically switched off some time (5, 10, 30, 60 minutes or never) after there is no load on the pan.

LCD with Backlight -
Backlight funtion can be set by software as always ON, always OFF or ON whenever there is load on the pan.

Rechargeable Battery with Internal Battery Charger -
The rechargeable battery can operate 120 hours per charge. The battery charger is placed internally, only power cord is extended from the scale for ease of use.

Optional RS-232 Interface


Specifications:
Model
LPW-1260
LPW-3015
Capacity
12kg
12kg
6kg
6kg
3kg
3kg
1500g
1500g
Display Resolution
1g
2g
0.5g
1g
0.2g
0.5g
0.1g
0.2g
Display
LCD with backlight
5 digits, 14mm(H) x 7mm(W)
Pan Size
235 x 178mm
Power
110, 120, 220, 240VAC +/-10%, 50/60Hz,
Operated by rechargeable battery of 120hours battery life
Maximum Humidity 85% Relative Humidity, non-condensing
Operating
Temperature
0°C to 40 °C (32°F to 104°F)
